General Purpose Double Sided Tissue Tape

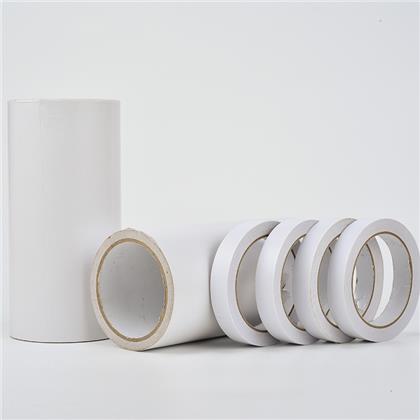

Lixin6310 is a general-purpose double sided tape based on a light weight tissue paper. The tape is coated on both sides with a high tack permanent acrylic adhesive system, with a 110gr. white siliconised paper release liner. 6310 has a 0.1 mm total thickness and is recommended for a variety of permanent bonding, mounting and splicing applications where high tack and adhesion are required.




General Purpose Double Sided Tissue Tape

PRODUCT REFERENCE

Lixin6310 is a general-purpose double sided tape based on a light weight tissue paper. The tape is coated on both sides with a high tack permanent acrylic adhesive system, with a 110gr. white siliconised paper release liner. 6310 has a 0.1 mm total thickness and is recommended for a variety of permanent bonding, mounting and splicing applications where high tack and adhesion are required.





Colours

White



Adhesive

Acrylic


Liner

White siliconised paper release liner on two sides



Carrier

Tissue


Thickness
0.1 mm




Availability
Asia/EU/NA
Currently available in all regions, subject to supply considerations.


APPLICATIONS
·Bonds a wide variety of foams and gaskets.
·Suitable for bonding cloth.
·Core starting of films, foils and paper webs.
·End tabbing of films, foils and papers.
·Fascia assembly.
·Mounting leather.
·Bonding of nameplates.
·Miscellaneous bonding, mounting and holding applications where a thin and flexible bond is required.
·Suitable for bonding a wide variety of similar and dissimilar substrates such as glass, metal and plastics.




PRODUCT BENEFITS

·Easily tearable by hand.
·Good long term ageing.
·Good UV resistance.
·High initial grab and tack.
·Good mid range temperature performance.
·Thin bonding solution.
·Versatile adhesive formulation for immediate bond to almost any substrate.
·Service temperature: -20°C to +120°C.








product Backing adhesive Total Thickness Initial Tack Peel Adhesion Holding power
Replace
Brand tape
(um) (mil) (#) N/in ASTM D-3330       (oz/in)
6306R Tissue Synthetic Rubber 60 2.4 8↑ 12↑ 43 0 ~ +65  /
6307R Tissue Synthetic Rubber 70 2.8 10↑ 13↑ 47 0 ~ +65  /
6308R Tissue Synthetic Rubber 80 3.2 10↑ 15↑ 54 0 ~ +65  /
6309R Tissue Synthetic Rubber 90 3.5 10↑ 15↑ 54 0 ~ +65  /
6310R Tissue Synthetic Rubber 100 3.9 12↑ 17↑ 61 0 ~ +65  /
6306 Tissue Solvent Acrylic 60 2.4 8↑ 12↑ 43 24hour↑/100℃  3M467
6308 Tissue Solvent Acrylic 80 3.2 10↑ 13↑ 47 24hour↑/80℃  /
6309 Tissue water-base Acrylic 90 3.6 14↑ 12↑ 43 24hour↑/80℃ /
6310 Tissue Solvent Acrylic 100 4 14↑ 12↑ 43 24hour↑/80℃ /
6012 Tissue Solvent Acrylic 120 4.8 16↑ 18↑ 54 24hour↑/120℃ tesa60976
6314 Tissue Solvent Acrylic 140 5.3 18↑ 20↑ 60 24hour↑/120℃ tesa68646
6314S Tissue Solvent Acrylic 140 5.3 18↑ 22↑ 60 24hour↑/80℃ tesa68626
6315 Tissue Solvent Acrylic 150 5.7 18↑ 20↑ 60 24hour↑/100℃ tesa60980/3M55230/teraoka777
6315P Tissue Solvent Acrylic 150 5.7 18↑ 20↑ 60 24hour↑/120℃ Nitto500/3M9448/ G9000/T4000
6315S Tissue Solvent Acrylic 150 5.7 18↑ 20↑ 60 24hour↑/120℃ Nitto500/3M9448/ G9000/T4000
6316 Tissue Solvent Acrylic 160 6.08 18↑ 20↑ 60 24hour↑/120℃ Nitto5015E
6314V(Low voc) Tissue  Acrylic 150 5.7 18↑ 18↑ 54 24hour↑/80℃ Nitto510
6315V(Low voc) Tissue  Acrylic 150 5.7 18↑ 18↑ 54 24hour↑/80℃ Nitto512
6325V(Low voc) Tissue  Acrylic 250 9.5 20↑ 20↑ 60 24hour↑/80℃ Nitto515
