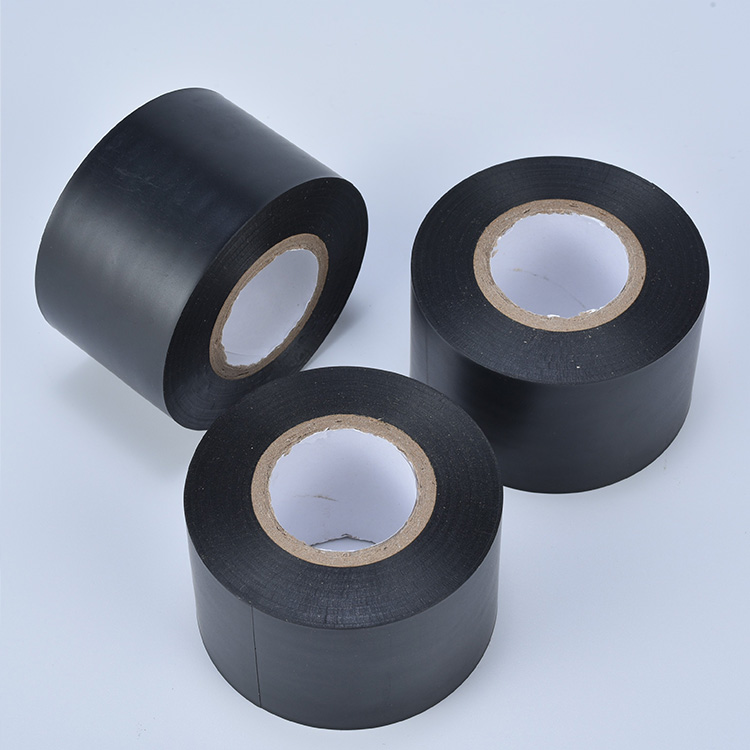

PVC Heavy Duty Adhesive Tape


Lixin heavy-duty premium non corrosive self-extinguishing soft PVC tape which combines the high flexibility and abrasion resistance of a superior quality soft PVC backing with the high grab and adhesion of an aggressive non corrosive pressure sensitive rubber-based adhesive system. It has been designed for all underground or above ground optimum anti corrosive duct and pipe protection and for improved electrical insulation.




PVC Heavy Duty Adhesive Tape

PRODUCT REFERENCE

Lixin heavy-duty premium non corrosive self-extinguishing soft PVC tape which combines the high flexibility and abrasion resistance of a superior quality soft PVC backing with the high grab and adhesion of an aggressive non corrosive pressure sensitive rubber-based adhesive system. It has been designed for all underground or above ground optimum anti corrosive duct and pipe protection and for improved electrical insulation.






Colours

Black



Adhesive

Rubber Resin


Carrier

Soft PVC



Thickness

0.18mm/0.25 mm/0.5mm


APPLICATIONS
·Heavy duty anti-corrosive protection tape for all ducts, pipelines and tubes.
·Primary electrical insulation.
·Protection for low and medium voltage cables splices.

·Typically engineered for the professional requirements of telecom and electricity boards.





PRODUCT BENEFITS
·Excellent resistance to abrasion, corrosion and moisture.
·High dielectric strength and mechanical protection.
·Excellent conformability
·Environmentally friendly technology.
·Conforms to European Directive 2000/53 EC (lead, chromium VI, mercury, cadmium free).
·Continuous Temperature +70°C.

Features
·Flame retardant
·Self Extinguishing
·Conformable
·Water and UV Resistant
·Abrasion Resistant
·Non-corrosive adhesive







product Total  Thickness Carrier Backing Thickness Adhesion to steel Adhesion to Backing Tensile Strength
Elongation
(%)
Dielectric Strength  Max.Continuous Operating Temperature
(um) (um) N/cm N/cm N/cm % kv/mm
21116 110 PVC Flim 95 1.2 1.0  18 220 45 80°C/176°F
21126 120 PVC Flim 105 1.2 1.0  19 220 45 80°C/176°F
21G66 130 PVC Flim 115 1.2 1.0  21 230 45 80°C/176°F
21156 150 PVC Flim 135 1.2 1.0  23 250 45 80°C/176°F
21166 165 PVC Flim 150 1.2 1.0  25 250 43 80°C/176°F
21176 175 PVC Flim 160 1.2 1.0  27 250 43 80°C/176°F
21556 180 PVC Flim 165 1.2 1.0  28 250 43 80°C/176°F
21196 190 PVC Flim 175 1.2 1.0  29 250 43 80°C/176°F
21206 200 PVC Flim 185 1.2 1.0  30 250 43 80°C/176°F
