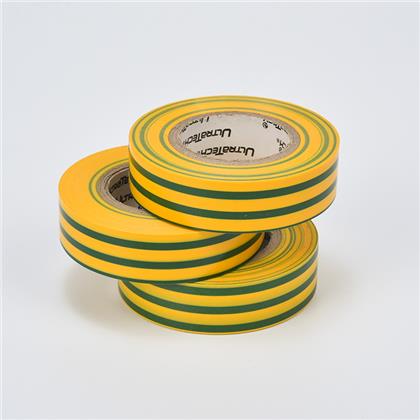

Yellow green PVC electrical insulating tape


Yellow green PVC electrical insulating tape is a lead free PVC electrical insulation tape with a cross-linked solvent based rubber-resin adhesive suitable for general electrical insulation work.




Yellow green PVC electrical insulating tape

PRODUCT REFERENCE

Yellow green PVC electrical insulating tape is a lead free PVC electrical insulation tape with a cross-linked solvent based rubber-resin adhesive suitable for general electrical insulation work.





Colours

Black, White, Red, Blue, Yellow, Yellow/Green, Transparent, Grey



Adhesive

Rubber Resin


Carrier

Soft PVC



Thickness

0.13/0.15/0.18 mm


APPLICATIONS
·Colour coding and insulation of electrical cabling
·Colour coding components, intermediate stock and finished goods during manufacture
·Cableharnessing, insulation, abrasion protection for OEM companies in household appliances market
·Masking off during chemical and electro-plating
·Masking and protection of aircraft portholes during manufacture

·Masking off aircraft landinggear when cadmium plating



PRODUCT BENEFITS
·It is easy to unwind and tear so reduces the risk of RSI. Ideal for indoor and outdoor use as it’s water and UV resistant
·The extreme conformability enables the tape to be easily applied to awkward surfaces. Used for insulating cables, harnessing and colour coding.

·It is available in a wide range of colours, width and lengths.



Features
·Flame Retardant
·Self-extinguishing
·Easy unwind and easy tear
·Flexible and Conformable
·Water Resistant
·UV Resistant
·Abrasion Resistant
·Non-corrosive adhesive







product Total  Thickness Carrier Backing Thickness Adhesion to steel Adhesion to Backing Tensile Strength
Elongation
(%)
Dielectric Strength  Max.Continuous Operating Temperature
(um) (um) N/cm N/cm N/cm % kv/mm
21116 110 PVC Flim 95 1.2 1.0  18 220 45 80°C/176°F
21126 120 PVC Flim 105 1.2 1.0  19 220 45 80°C/176°F
21G66 130 PVC Flim 115 1.2 1.0  21 230 45 80°C/176°F
21156 150 PVC Flim 135 1.2 1.0  23 250 45 80°C/176°F
21166 165 PVC Flim 150 1.2 1.0  25 250 43 80°C/176°F
21176 175 PVC Flim 160 1.2 1.0  27 250 43 80°C/176°F
21556 180 PVC Flim 165 1.2 1.0  28 250 43 80°C/176°F
21196 190 PVC Flim 175 1.2 1.0  29 250 43 80°C/176°F
21206 200 PVC Flim 185 1.2 1.0  30 250 43 80°C/176°F
