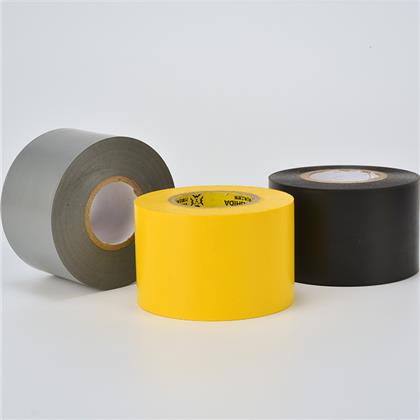

PVC Pipe wrapping Tape

PVC pipe wrapping tape is using soft PVC film as backing material and coated with rubber based adhesive. The thickness ranges from 110mic to 500mic. It is used for pipe wrapping and protecting
The tape has a very good abrasion and water resistance that enables the tape to be used where damp or moisture is present and makes it ideal for underground pipewrap applications and general external tasks where a good waterproof seal is required.




PVC Pipe wrapping Tape

PRODUCT REFERENCE

PVC pipe wrapping tape is using soft PVC film as backing material and coated with rubber based adhesive. The thickness ranges from 110mic to 500mic. It is used for pipe wrapping and protecting
The tape has a very good abrasion and water resistance that enables the tape to be used where damp or moisture is present and makes it ideal for underground pipewrap applications and general external tasks where a good waterproof seal is required.





Colours

Black,Yellow, silver Grey



Adhesive

Rubber Resin


Carrier

Soft PVC



Thickness

0.13/0.15/0.18/0.20/0.25/0.50mm


APPLICATIONS
·Corrosion and abrasion protection for pipework above or under ground
·For insulation protection of various pipes







PRODUCT BENEFITS
·Excellent resistance to abrasion, corrosion and moisture
·Excellent conformability
·Tape can be applied at low temperature (till -10°C)
·Index temperature 0°C to 90°C
·Accordance with the requirements of the RoHS directive

Features
·Flame Retardant
·Self-extinguishing
·Easy unwind and easy tear
·Flexible and Conformable
·Water Resistant
·UV Resistant
·Abrasion Resistant
·Non-corrosive adhesive






product Total Thickness Carrier Backing Thickness Adhesion to steel Adhesion to Backing Tensile Strength
Elongation
(%)
Dielectric Strength  Flame Resistance Max.Continuous Operating Temperature
(um) (um) N/cm N/cm N/cm % kv/mm
21F36 130 PVC Flim 115 1.2 / 20 200 / / 80°C/176°F
21F56 150 PVC Flim 135 1.2 / 22 220 / / 80°C/176°F
21F86 180 PVC Flim 175 1.2 / 28 230 / / 80°C/176°F
21206 200 PVC Flim 185 1.2 / 30 230 / / 80°C/176°F
21256 250 PVC Flim 235 1.0  / 35 250 / / 80°C/176°F
21506 500 PVC Flim 235 1.0  / 50 250 / / 80°C/176°F
